H310M_S2H_2.0

0.00

Avilability:

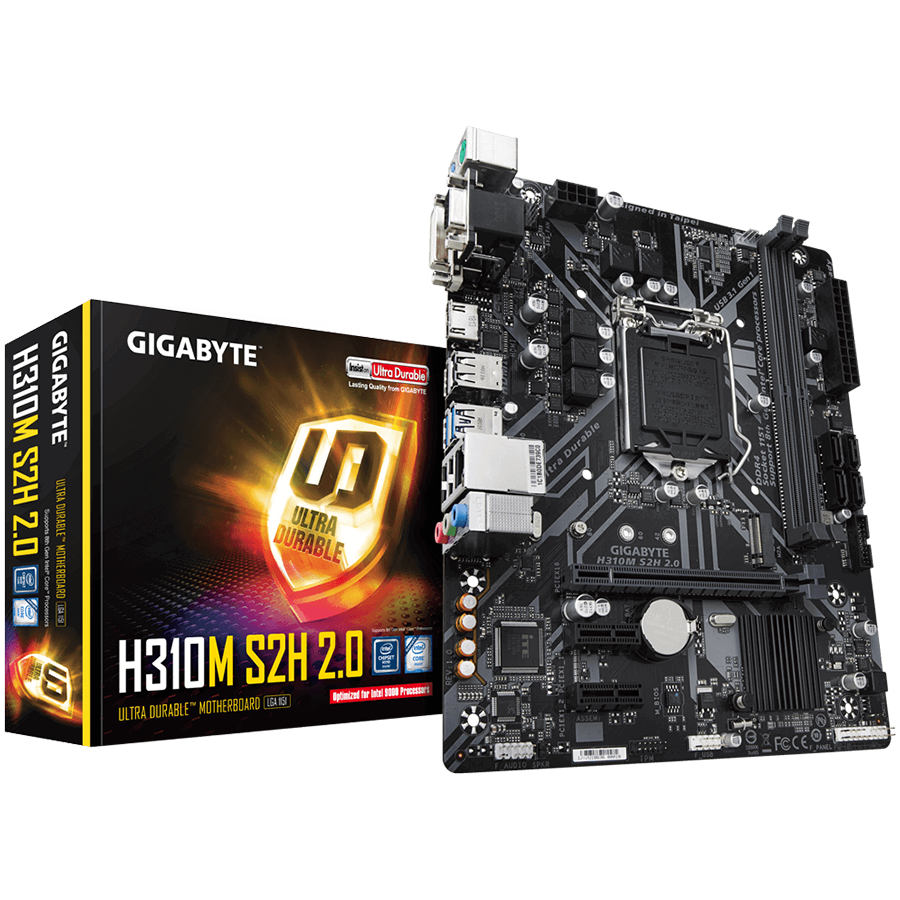

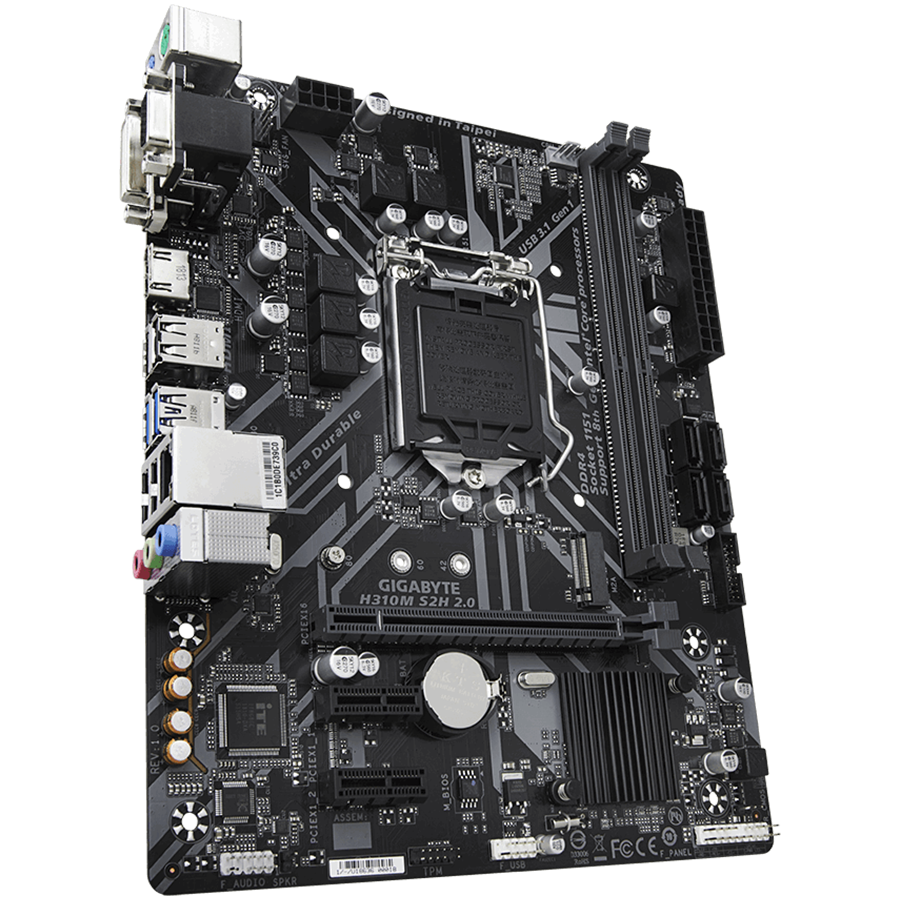

Gigabyte Main Board Desktop H310 (S1151, 2xDDR4, HDMI, DVI-D, VGA, 1xPCIe x16, 2xPCIe x1, 4xSATA III, M.2, 2xUSB 3.1, 4xUSB 2.0, 1 x M.2, 2x PS/2, Gb LAN, Audio ALC887 mATX

Nuorodos:

Duomenų lapas:

Į krepšelį >Pridėti į mėgstamus

Gigabyte Main Board Desktop H310 (S1151, 2xDDR4, HDMI, DVI-D, VGA, 1xPCIe x16, 2xPCIe x1, 4xSATA III, M.2, 2xUSB 3.1, 4xUSB 2.0, 1 x M.2, 2x PS/2, Gb LAN, Audio ALC887 mATX

Parametro pavadinimas Reikšmė
Chipset" Intel H310"
Supports Central Processor Unit" Intel Celeron <br/>Intel Pentium <br/>Intel Core i5 <br/>Intel Core i3 <br/>Intel Core i7 <br/>Intel Core i9"
CPU Socket Standard" Socket 1151"
CPU Maximum Quantity Supports" 1"
Memory Type" DDR4 SDRAM"
Memory Form Factor" DIMM 288-pin"
Memory Speed" 2133MHz(PC4-17000) <br/>2400MHz(PC4-19200) <br/>2666MHz(PC4-21300)"
Maximum Installable System Memory Storage Capacity" 32 GB"
Memory Slot Total Quantity" 2"
Provides Error Checking Method" non-ECC"
Memory Features" Two DDR Channels <br/>Unbuffered <br/>Dual Rank <br/>Single Rank <br/>XMP"
Integrated" <b>Storage Controller:</b><br/>SATA (4)<br/><b>Storage Controller:</b><br/>PCIe/SATA (1 x M.2 (Key M))<br/>"
Audio Integrated" yes"
Device Location" Integrated"
Audio Chipset" Realtek ALC887"
Audio Output Mode" 7.1 Channel Surround"
Compliant Audio Standards" High Definition Audio"
LAN Integrated" yes"
LAN Chipset" Realtek RTL8118"
Data Link Protocol Supports" Gigabit Ethernet/Fast Ethernet/Ethernet"
PCI Express 3.0 x16" 1"
PCI Express 2.0 x1" 2"
PS/2" 2"
HDMI" 1 (HDMI (Type A))"
DVI" 1 (DVI-D)"
VGA" 1 (15-pin D-sub)"
USB 3.1 Gen 1" 2 (USB Type A)"
USB 2.0" 4 (4-pin USB (type A))"
LAN" 1 (RJ-45)"
Audio Interface" 3 (3.5-mm minijack)"
BIOS Type" AMI"
BIOS Features" WfM 2.0 Support <br/>PnP 1.0a Support <br/>SMBIOS 2.7 Support <br/>DMI 2.7 Support <br/>ACPI 5.0 Support <br/>128Mb AMI UEFI Legal BIOS with GUI Support"
Hardware Monitoring" Chassis Fan Tachometer <br/>CPU Fan Tachometer <br/>CPU Temperature <br/>CPU Voltage <br/>System Temperature <br/>System Voltage <br/>Chassis Temperature Sensing &"
Power Connectors Type" 24+8 pin"
Mainboard Features" VR Ready<br/>NVMe Support"
Form Factor" Micro ATX"
Height (mm)" 185 mm"
Width (mm)" 226 mm"
Warranty Products Returnable" Yes"
Warranty Term (month)" 36 month(s)"
Warranty Validation Criteria" Serial Number"
Pack Weight Brutto (kg)" 0.7 kg"
Pack Weight Netto (kg)" 0.001 kg"
Pieces in pack" 1"
Box Weight Brutto (kg)" 0.7 kg"
Retail Packaging Net Weight Carton" 0.001 kg"
Retail Packaging Net Weight Plastic" 0.001 kg"
Packs in Box" 1"
Package Type" Retail"
