PECMS01

6.60

Avilability: 1

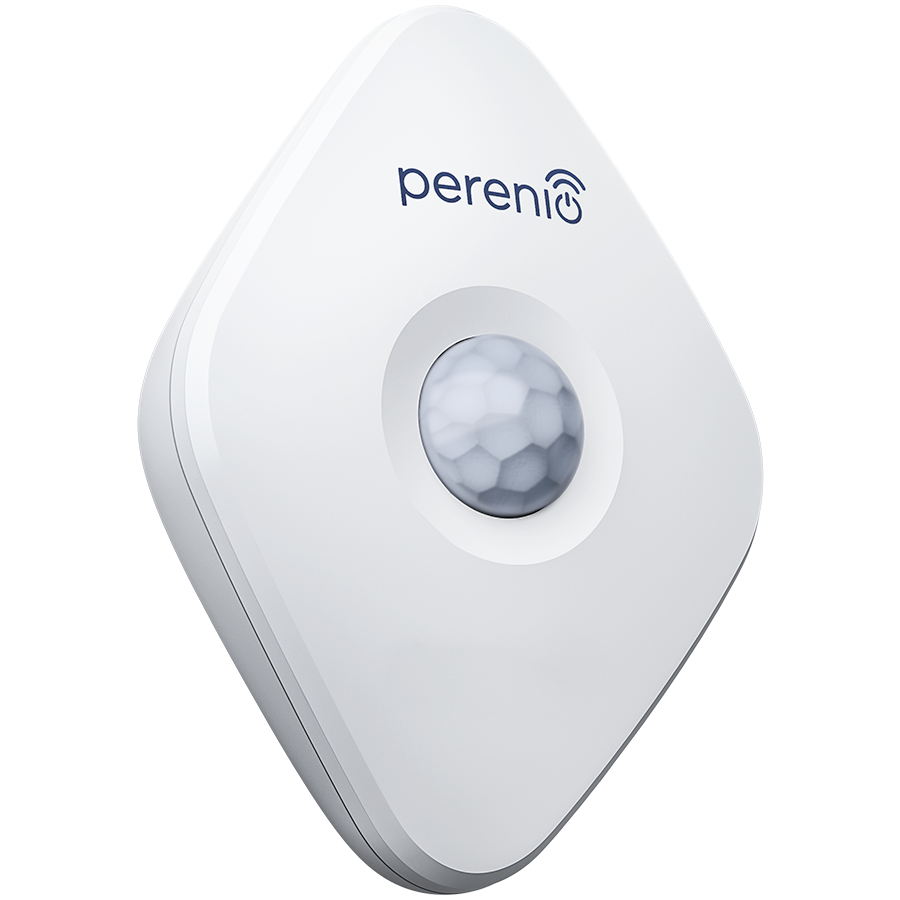

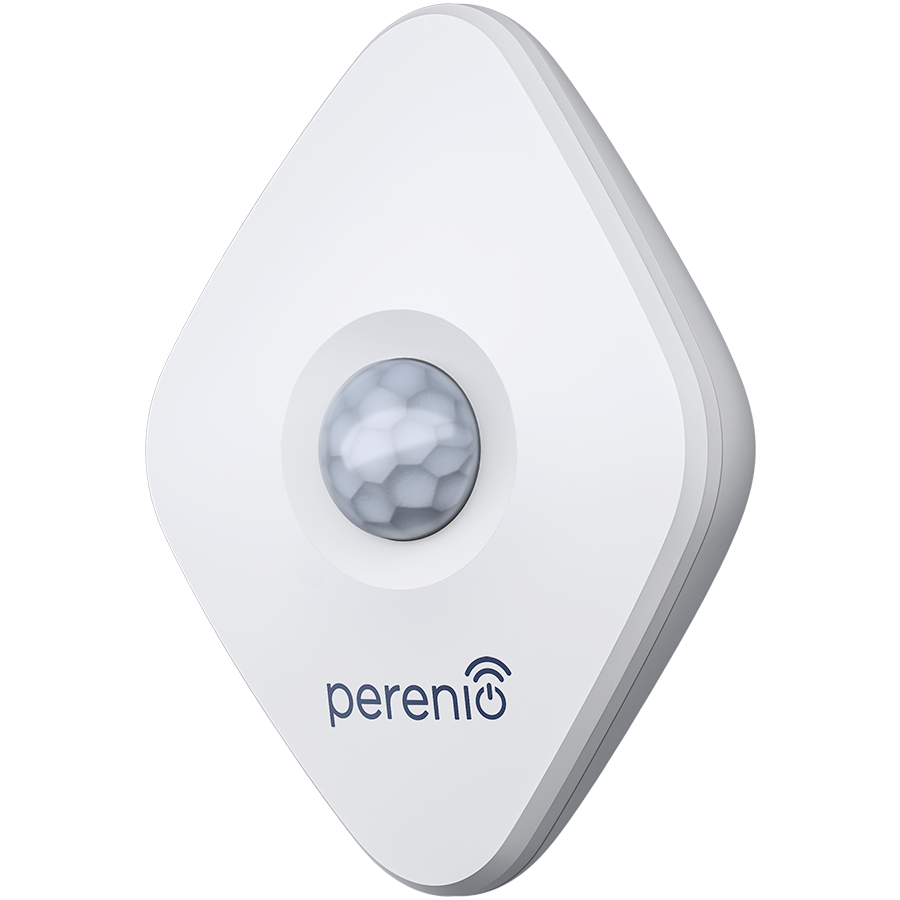

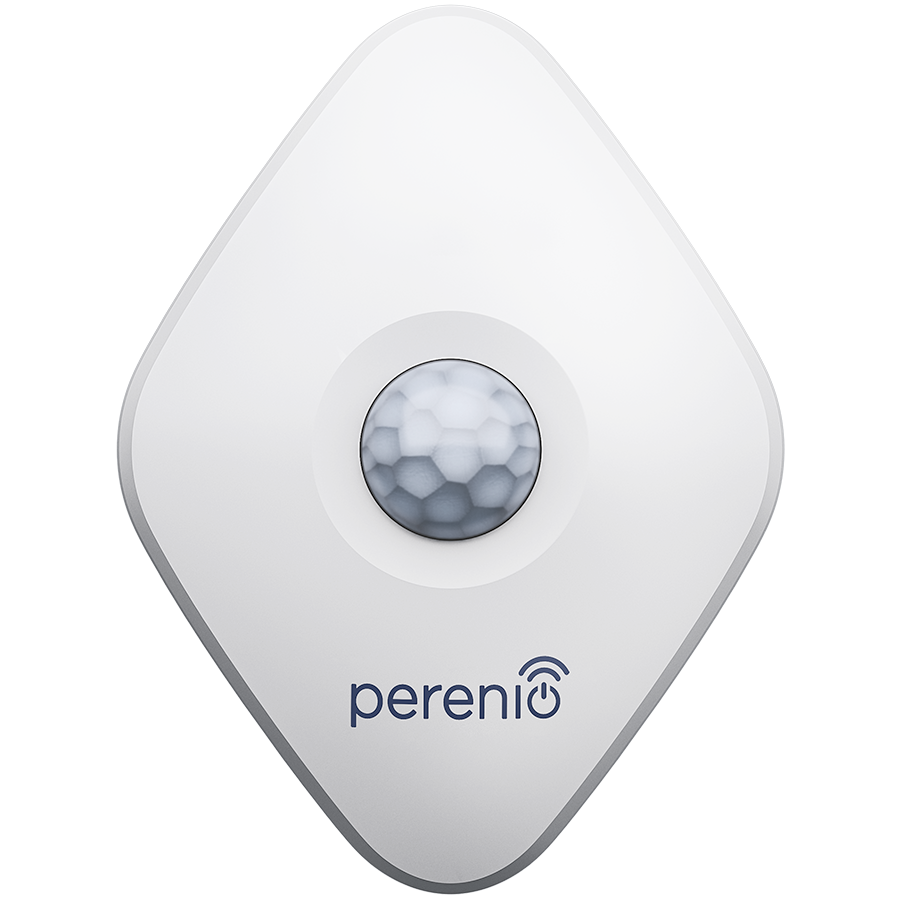

PECMS01 Motion Sensor

Nuorodos:

Duomenų lapas:

Į krepšelį >Pridėti į mėgstamus

PECMS01 Motion Sensor

Parametro pavadinimas Reikšmė
Item Number" PECMS01"
Main Chipset" NXP5169 (ZigBee IC)"
Communication Technology" ZigBee НА 1.2 (IEEE 802.15.4)"
Operating Frequency (GHz)" 2.4 GHz"
Connection Radius" up to 40 m (open area)"
Detection Technology" PIR (Passive IR Sensor)"
Light Sensitivity" 20 lux min"
Detection Angle" 110°±10°"
Detection Distance" 6 m (detection area: 10 m x 6 m at 110°)"
Smart Antenna Type" Built-in"
Antenna Repeater" No"
Standalone Operation" N/A"
Installation" For indoor installation only <br/>On a flat vertical surface"
Installation Height" 2.0-2.6 m (recommended)"
External Colour" White"
Certificate" CE, EAC, RoHS, UA.TR"
Product Size" 84.4x63.4x26.3 mm"
Gross Weight" 42.4 g"
Weight Netto" 31.9 g"
Battery Model" CR2450"
Battery Included Quantity" 1"
Operating Voltage" 3 V"
Battery (Capacity)" 600 mAh"
Battery Lifespan" 24 month(s)"
Alarm Current" 19 mA"
Standby Current" 0.0098 mA"
Operating temperatures" 0°C to +45°C"
Operating Humidity" 10% to 85% (non-condensing)"
Non-Operating Temperatures" -10°C to +50°C"
Non-Operating Humidity" 10% to 95% (non-condensing)"
Warranty Products Returnable" Yes"
Warranty Term (month)" 24"
Warranty Validation Criteria" Serial Number"
Warranty Term Notes" 24 months - for CIS <br/>24 months - for EU, UK, TR <br/>36 months - for NO, SE"
Pack Length (mm)" 127 mm"
Pack Width (mm)" 145 mm"
Pack Height (mm)" 28 mm"
Pack Weight Brutto (kg)" 0.07 kg"
Pack Weight Netto (kg)" 0.043 kg"
Pieces in pack" 1"
Box Length (mm)" 395 mm"
Box Width (mm)" 275 mm"
Box Height (mm)" 195 mm"
Box Weight Brutto (kg)" 2.09 kg"
Packs in Box" 20"
Retail Packaging Net Weight Carton" 0 kg"
Retail Packaging Net Weight Plastic" 0 kg"
EAN Code" 8595248142770"
#Color" #FFFFFF"
Color box dimensions (mm)" 127x145x28 mm"
Single pack gross weight (kg)" 0.079 kg"
Carton weight (kg)" 2.09 kg"
Quantity of the boxes per pallet (by air)(pcs)" 1260"
Dimensions of pallet (by air)" 120x100x151 cm"
Quantity of the boxes per pallet (by sea)(pcs)" 1800"
Dimensions of pallet (by sea)" 120x100x215 cm"
EAN code for master box" 8595248142787"
